| Image circle (mm) |
Extension rings |
Magnification 侾丗 |
Working distance (mm) |
Object-to- image distance (mm) |
Object size 1/2"sensor (mm) |
Object size 2/3"sensor (mm) |
Mount Type |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Componon 4.0/28mm  <僟僂儞儘乕僪> 仠Relative Illumination, Distortion, Transmittance 仠MTF 仠Dimension |
30.0 |
--- 1亊25mm 2亊25mm |
1.76-0.69 0.76-0.44 0.44-0.32 |
52-21 21-13 13-10 |
124-118 118-136 135-157 |
8.4亊11.3-3.3亊4.4 3.4亊4.5-2.1亊2.8 2.1亊2.8-1.5亊2.0 |
11.6亊15.5-4.6亊6.1 4.7亊6.2-2.9亊3.9 2.9亊3.9-2.1亊2.8 |
Leica |
|||
| Componon 4.0/35mm  <僟僂儞儘乕僪> 仠Relative Illumination, Distortion, Transmittance 仠MTF 仠Dimension |
32.5 |
--- 1亊25mm 2亊25mm |
3.07-0.94 0.96-0.56 0.57-0.40 |
112-38 39-25 25-19 |
184-136 136-147 147-167 |
14.8亊19.7-4.5亊6.0 4.6亊6.1-2.7亊3.6 2.7亊3.6-1.9亊2.6 |
20.3亊27.1-6.2亊8.3 6.3亊8.4-3.7亊4.9 3.7亊4.9-2.6亊3.5 |
Leica |
|||
| APO-Componon HM 2.8/40mm  <僟僂儞儘乕僪> 仠Relative Illumination, Distortion, Transmittance 仠MTF 仠Dimension |
43.2 |
--- 1亊25mm 2亊25mm |
11.16-1.41 1.44-0.76 0.77-0.52 |
476-71 73-44 45-34 |
548-169 167-170 167-182 |
53.6亊71.4-6.8亊9.0 6.9亊9.3-3.7亊4.9 3.7亊4.9-2.5亊3.3 |
73.6亊98.2-9.3亊12.4 9.5亊12.7-5.0亊6.7 5.1亊6.8-3.5亊4.6 |
Leica |
|||
| APO-Componon HM 4.0/45mm  <僟僂儞儘乕僪> 仠Relative Illumination, Distortion, Transmittance 仠MTF 仠Dimension |
43.2 |
--- 1亊25mm 2亊25mm |
亣-1.84 1.90-0.92 0.94-0.62 |
亣-104 106-61 62-47 |
亣-201 203-184 184-194 |
亣亊亣-8.9亊11.8 9.2亊12.1-4.4亊5.9 4.5亊6.0-2.6亊3.9 |
亣亊亣-12.2亊16.2 12.5亊16.7-6.1亊8.1 6.2亊8.2-4.1亊.54 |
Leica |
|||
| Componon-S 2.8/50mm  <僟僂儞儘乕僪> 仠Relative Illumination, Distortion, Transmittance 仠MTF 仠Dimension |
43.2 |
--- 1亊25mm 2亊25mm |
亣-2.12 2.18-1.06 1.07-0.70 |
亣-138 141-82 83-63 |
亣-235 238-204 204-211 |
亣亊亣-10.6亊13.6 10.5亊14.0-5.1亊6.8 5.1亊6.8-3.4亊4.5 |
亣亊亣-14.0亊18.7 14.4亊19.2-7.0亊9.3 7.1亊9.4-4.6亊6.2 |
Leica |
|||
| APO-Componon HM 4.0/60mm  <僟僂儞儘乕僪> 仠Relative Illumination, Distortion, Transmittance 仠MTF 仠Dimension |
60.0 |
--- 1亊25mm 2亊25mm |
亣-4.21 4.43-1.53 1.56-0.93 |
亣-287 300-126 128-91 |
亣-384 397-249 250-238 |
亣亊亣-20.2亊27.0 21.3亊28.4-7.3亊9.8 7.5亊10.0-4.5亊6.0 |
亣亊亣-27.8亊37.1 29.2亊39.0-10.1亊13.4 10.3亊13.7-6.2亊8.2 |
Leica |
|||
| Componon-S 4.0/80mm  <僟僂儞儘乕僪> 仠Relative Illumination, Distortion, Transmittance 仠MTF 仠Dimension |
80.6 |
1亊25mm 2亊25mm 3亊25mm |
亣-5.35 5.61-2.01 2.04-1.24 |
亣-482 503-213 216-151 |
亣-604 625-361 363-323 |
亣亊亣-25.7亊34.3 26.7亊35.9-9.7亊12.9 9.8亊13.1-6.0亊7.9 |
亣亊亣-35.3亊47.1 37.1亊49.4-13.3亊17.7 13.5亊18.0-8.2亊10.9 |
Leica |
|||
| APO-Componon HM 4.5/90mm  <僟僂儞儘乕僪> 仠Relative Illumination, Distortion, Transmittance 仠MTF 仠Dimension |
87.8 |
1亊25mm 2亊25mm 3亊25mm |
亣-13.83 15.50-2.86 2.93-1.60 |
亣-1308 1459-319 325-205 |
亣-1431 1580-466 471-377 |
亣亊亣-66.4亊88.5 74.4亊99.2-13.7亊18.3 14.1亊18.8-7.7亊10.2 |
亣亊亣-91.3亊121.7 102亊136-18.9亊25.2 19.3亊25.8-10.6亊14.1 |
Leica |
|||
| Componon-S 5.6/100mm  <僟僂儞儘乕僪> 仠Relative Illumination, Distortion, Transmittance 仠MTF 仠Dimension |
96.8 |
2亊25mm 3亊25mm |
亣-4.71 4.87-2.19 |
亣-558 574-300 |
亣-706 721-473 |
亣亊亣-22.6亊30.1 23.4亊31.2-10.5亊14.0 |
亣亊亣-31.1亊41.5 32.1亊42.9-14.5亊19.3 |
Leica |
|||
| Componon-S 5.6/135mm  <僟僂儞儘乕僪> 仠Relative Illumination, Distortion, Transmittance 仠MTF 仠Dimension |
150.9 |
2亊25mm 3亊25mm |
亣-6.98 7.25-3.05 |
亣-1055 1091-522 |
亣-1235 1270-727 |
亣亊亣-33.5亊44.7 34.8亊46.4-14.6亊19.5 |
亣亊亣-46.1亊61.4 47.8亊63.8-20.1亊26.8 |
Leica |
|||
| Componon-S 5.6/150mm  <僟僂儞儘乕僪> 仠Relative Illumination, Distortion, Transmittance 仠MTF 仠Dimension |
150.9 |
2亊25mm 3亊25mm |
亣-31.89 37.44-5.06 |
亣-4917 5752-883 |
亣-5098 5933-1089 |
亣亊亣-153亊204 179亊239-24.3亊32.4 |
亣亊亣-210亊280 247亊329-33.4亊44.5 |
Leica |
|||
儅僔儞價僕儑儞儗儞僘乮UNIFOC58/76乯

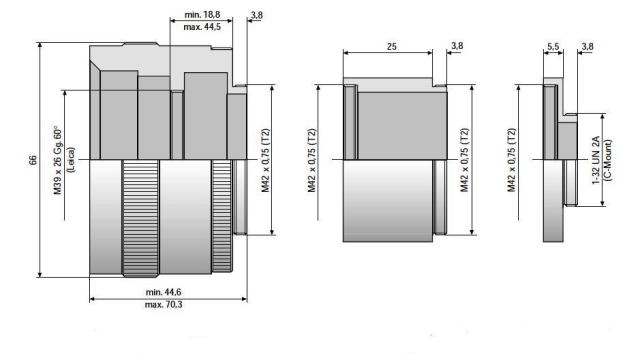

仭UNIFOC 58
Focus mount
UNIFOC 58

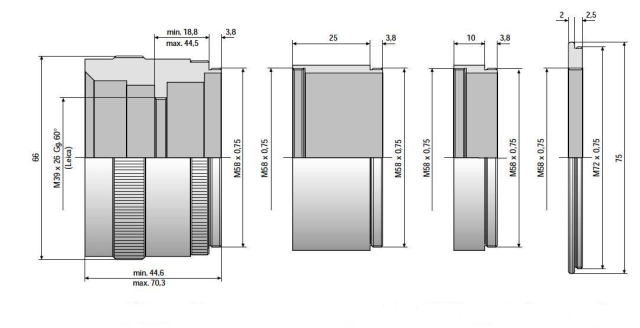

仭UNFOC 76
Extension Tube
Adapter
Focus mount
UNIFOC 76
Extension Tube
Adapter
Extension Tube
| Mount Type |
|||||
|---|---|---|---|---|---|
| Focus Mount UNIFOC 58  |
Leica Mount/T2(M42x0.75) 仸Extension 44.6mm-70.3mm |
||||
| Extension Tube 25mm |
T2(M42x0.75)/T2(M42x0.75) |
||||
| Adapter T2/C-Mount |
T2(M42x0.75)/C-Mount |
||||
| Adapter T2/Nikon |
T2(M42x0.75)/Nikon |
||||
| Adapter T2/M42x1 |
T2(M42x0.75)/M42x1.0 |
||||
傾僋僙僒儕乕乮UNIFOC 58乯
傾僋僙僒儕乕乮UNIFOC 76乯
| Mount Type |
|||||
|---|---|---|---|---|---|
| Focus Mount UNIFOC 76  |
Leica Mount/M58x0.75 仸Extension 44.6mm-70.3mm |
||||
| Extension Tube 10mm |
M58x0.75/M58x0.75 |
||||
| Extension Tube 25mm |
M58x0.75/M58x0.75 |
||||
| Adapter M58x0.75/M72x0.75 |
M58x0.75/M72x0.75 |
||||
| Extension Tube 25mm |
M72x0.75/M72x0.75 |
||||
| Extension Tube 50mm |
M72x0.75/M72x0.75 |
||||
